Industrial Mezzanine Floor System for Automotive Spare Parts Storage Multi-tier Steel Structure Platform for Car Parts Warehouse

Product Description

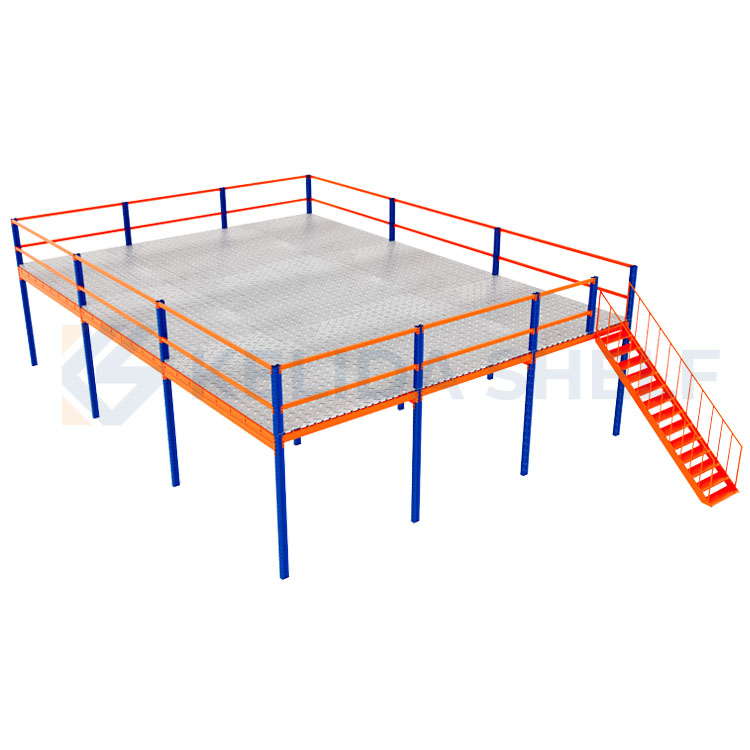

Product Showcase
Mezzanine Floor Layout Diagram

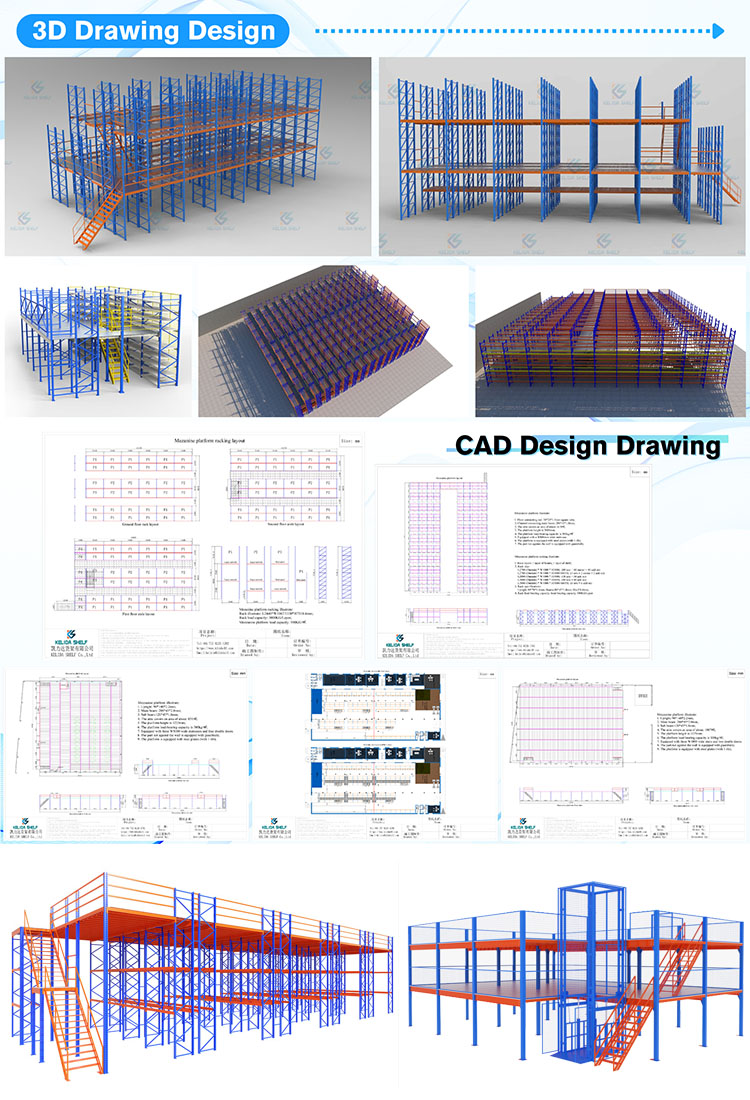

Structure Design Drawing

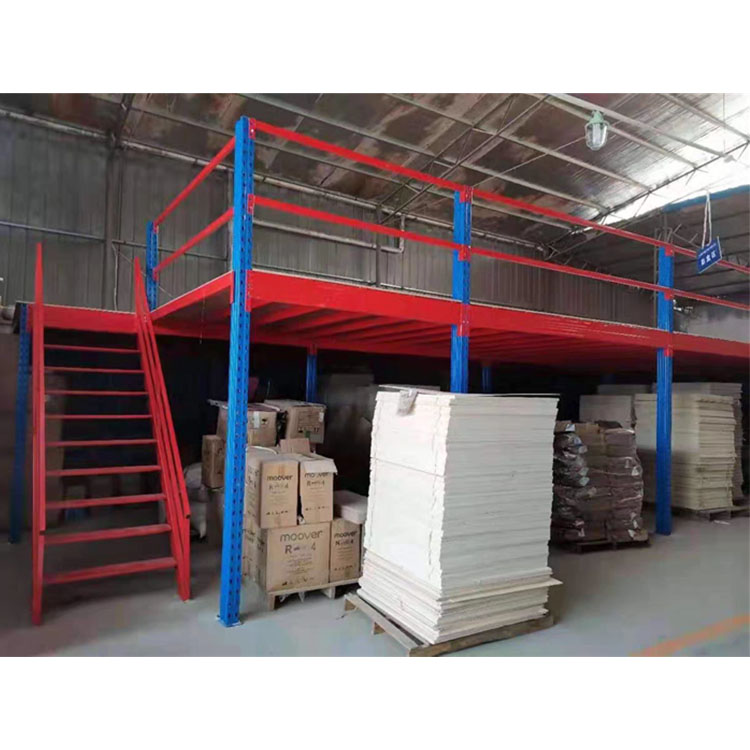

Heavy Duty Mezzanine Construction

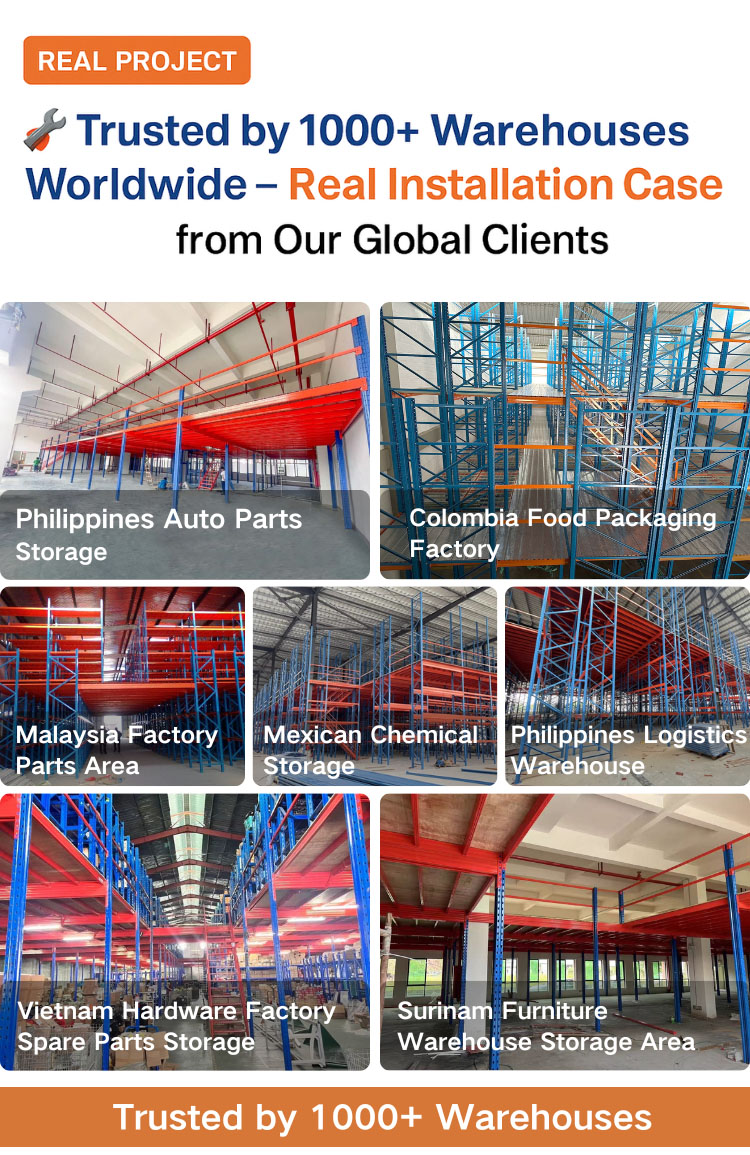

Warehouse Racking System Installation
Floor Panel Load Support Structure
Staircase and Guardrail Safety System
Product Specifications
Product Name Heavy Duty Mezzanine Floor Racking System
Floor Material Steel Floor Panel / Wooden Floor Panel
Main Material High-Quality Q235 Cold-Rolled Steel
Color Options Blue / Orange / Gray (Custom colors available)
Dimensions Customized According to Warehouse Layout
Tier Levels 2–3 tiers (adjustable based on warehouse height)
Load Capacity 300–1000 kg/m² (depending on design)
Surface Finish Powder Coating / Galvanized
Standard Components Staircase, Guardrails, Loading Gates, Wire Mesh Fence
Packing Bubble Wrap + Export Carton / Pallet
Design Support Free 3D Design Layout
Certificates CE, RoHS, REACH
Application Area Warehouse, Factory, E-commerce Center, Spare Parts Storage
Features & Benefits
Increase the height of storage and space utilization.
High-density storage style, specially for loose or small box goods.
Can be single or multi-layered to suit diverse requirements.
Mezzanine floor loading capacity is 300-1000kgs/square meters, customizable based on warehouse conditions.
Works efficiently with hoisting machines, pallet jacks, and manual storage for loose goods.
Equipped with staircases, ladders, or elevators for safe and convenient access.
Easy to install with minimal disruption, designed to integrate with the building's existing structure.
Medium-duty (100-500kg/layer) and heavy-duty (500-4000kg/layer) loading configurations.
Industrial Racking Space Design
Manufacturing Capabilities

We are a professional manufacturer specializing in customized racking systems, including pallet racking, mezzanine floor racking, steel platforms, cantilever racking, light and medium-duty shelving, and drive-in rack. With over 20 years of experience, our manufacturing facility produces robust and high-quality storage products designed to optimize warehousing layout and operations.

Our engineering team focuses on developing smarter and more practical storage equipment to meet real-world needs, continuously upgrading our products with innovative features to deliver tailored warehousing solutions. From precise raw material cutting and rolling to automated welding and powder coating, our processes ensure extreme stability and high performance in industrial projects globally.

Automated Manufacturing Area
Steel Punching Machinery
Roll Forming Line
Powder Coating Line
Structural Column Welding
Product Inspection Area
Material Preparation Gallery
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional racking manufacturer. Our factory has been specializing in supermarket shelves, warehouse racks, and different kinds of display stands since 2004.
What is your delivery time?
In general, orders are completed within 15 days. Delivery times also depend on the exact order quantity and specific shelving design.
What are your terms of payment?
Our standard payment terms require a 30% deposit upon signing the PI, with the balance to be cleared by T/T before delivery.
Are samples available for testing?
Yes, samples are available at any time. We charge a nominal sample fee, which is fully returned during the confirmation of your next bulk order.
How are the racking systems installed?
We provide detailed, step-by-step installation instructions for every type of racking system. If required, we can also provide support to guide your installation team.
What information is needed to get a quick quotation?
To receive an accurate and quick quotation, please provide: 1) The dimensions of the rack (Length * Depth * Height), 2) Number of layers/shelves per set, 3) Desired load capacity per beam layer, and 4) Overall racking quantity.
